Heating timer replacement

[Link65]

I'm trying to replace an old Landys and Gyr RWB2 heating & hot water timer with a Horstmann 425 Tiara.

I'm just a bit perplexed as to the wiring - I've looked and the wiring diagram for the old timer and tried to convert it to the new 'tiara' timer.

But it looks totally wrong.

Can someone have a look and see if they can spot what I've done wrong? Heating timers are not my forte.

View attachment 20180312_100733.jpg



Edit: Just for the record, that's not my shoddy wiring.



[Octopus]

Oh dear .............



[Link65]

Oh dear .............

I'm not sure where you're going with that xD



[MJPD29]

That is truly horrendous, earth as a live cable and identification



[Link65]

That is truly horrendous, earth as a live cable and identification

Yeah, I didn't install this. but it's making identification difficult at best.



[MJPD29]

Yeah, I didn't install this. but it's making identification difficult at best.

Too right it does, have you a pic of the wiring diagram on back of original timeclock



[Link65]

Here's the original clock should be the same diagram as the upload on the first post.



[Pete999]

I'm trying to replace an old Landys and Gyr RWB2 heating & hot water timer with a Horstmann 425 Tiara.

I'm just a bit perplexed as to the wiring - I've looked and the wiring diagram for the old timer and tried to convert it to the new 'tiara' timer.

But it looks totally wrong.

Can someone have a look and see if they can spot what I've done wrong? Heating timers are not my forte.

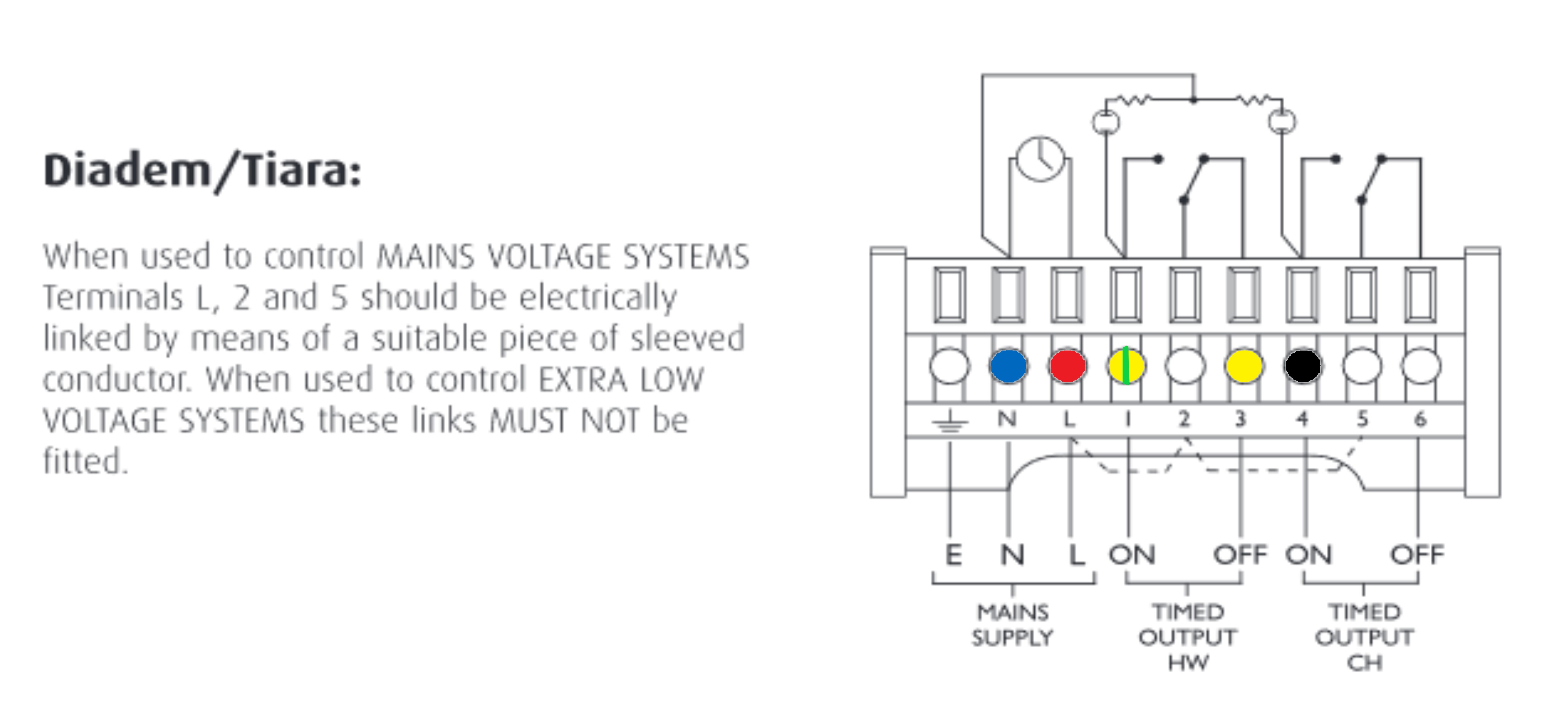

View attachment 41312

View attachment 41313

Edit: Just for the record, that's not my shoddy wiring.

I see the cpchas been used as a control conductor, not a good idea.



[Pete999]

You would be better advised to get an Electrician in to sort the cable out and connect the controller up for you, advising someone via email and pictures is not a good idea really.



[Link65]

You would be better advised to get an Electrician in to sort the cable out and connect the controller up for you, advising someone via email and pictures is not a good idea really.

No problemo

Thanks for having a look
