Life has been dealing our dog (Fido) a losing hand. Next doors cat has been sneaking in through the dog flap at night and its been eating his food. Fido's been showing all the classic symptoms of depression as well as losing weight because of malnutrition.

I've decided to throw some engineering at the problem and I've built a sprung ramp in front of his dog bowl and installed a hinged lid on the bowl itself. Under the ramp I've mounted two micro-switches which I want to configure so they will operate a solenoid to lift the lid on his bowl. Only problem is I'm not sure how to wire this system and I'm way to lazy to Google for an answer.

There's a couple of things you might need to know;

1. Next doors cat is considerably heavier than Fido due to the extra rations he's been helping himself to over the recent weeks.
2. The two micro-switches are mounted at different heights so that when the lightweight Fido stands on the ramp only the left hand one operates but when the heavier cat stands on the ramp they both operate.
3. The whole system including the solenoid is 230 volts.
4. The cost of the extra dogfood recently has nearly bankrupted me so I can't afford to buy any more components for this project.

Here's a drawing of the system I've built so far, please let me know how to wire it up so the lid will lift only when Fido is on the ramp.

Dog Bowl.jpg

Last edited:
Not sure I'm able to attempt this but the effort you've put into this is amazing mate!

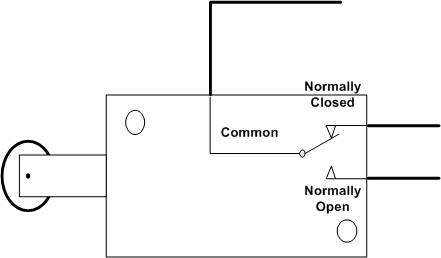

Here's a larger view of the micro-switch showing the contact arrangement.


Last edited:
It'll be the right hand microswitch that invariably interrupts the supply to the solenoid, so the solenoid must be fed via the N/C contact there. Therefore the common terminal on that right hand microswitch to be fed via the N/O contact on the left hand microswitch, and 230V supplying the common terminal there.

Tell Fido to keep his chin up.

Thanks Happy Jack, Fido's clinical depression already seems to be getting better:) Maybe someone can give me a circuit drawing of the finished circuit just to make my life easier.

A far easier solution would be to simply rig the flap so the cat can get in but not out, then capture it in the kitchen and drown the ****er. problem solved and the only drain on your beleaguered resources will be a screw to stop the egress of said cat. :)

Okay, I went ahead and wired it up;

Fido Cct 1.jpg

It works fine, when the lightweight Fido stands on the ramp only microswitch 1 operates and the solenoid lifts the lid on his bowl. When the overfed cat stands on the ramp both microswitches operate and Microswitch2 interrupts the solenoid supply so the lid stays down.


Now we have a small problem. Fido's back on his normal food intake and he's gained weight to the point where he's heavier than the cat. I'd appreciate it if someone can give me an alternative circuit, using exactly the same components, to ensure he still gets all the food.

Given your efforts, isn't it about time Fido took a stand and threw his weight about a bit? As the old saying goes, a dog flattened by an opponent can get up again. A dog flattened by conformity stays down for good.

Yeah you're right but Fido's a pacifist through and through, I think it was way too much Lenny Kravitz and second hand ganja smoke in his early days made him a lover not a fighter.

I don't understand ho the ramp would manage to hit both switches Marvo? I may just be having a blonde engineering moment.

edit:

never mind. I forgot about the cat. I see why now ;). The little fattie knocks the circuit off.

Last edited:
And as for Fido now becoming the fattie, I'd do away with 1 switch And make so the ramp is only able to knock the switch on at the weight of your dog. I.e the cat won't be heavy enough to lower the ramp to hit the switch

Last edited:
Lol, yeah you could make one microswitch redundant and adjust it for Fido's weight but it kinda defeats the point of the exercise which is to get you guys thinking about different switch configurations and circuits:) I'm sure now you've got a grasp of the way the system works you can come up with a circuit.

The idea will be that the dog is heavy enough to hit both switches, cat can only switch one.


Attachments

  • image.jpg
    137.9 KB · Views: 48

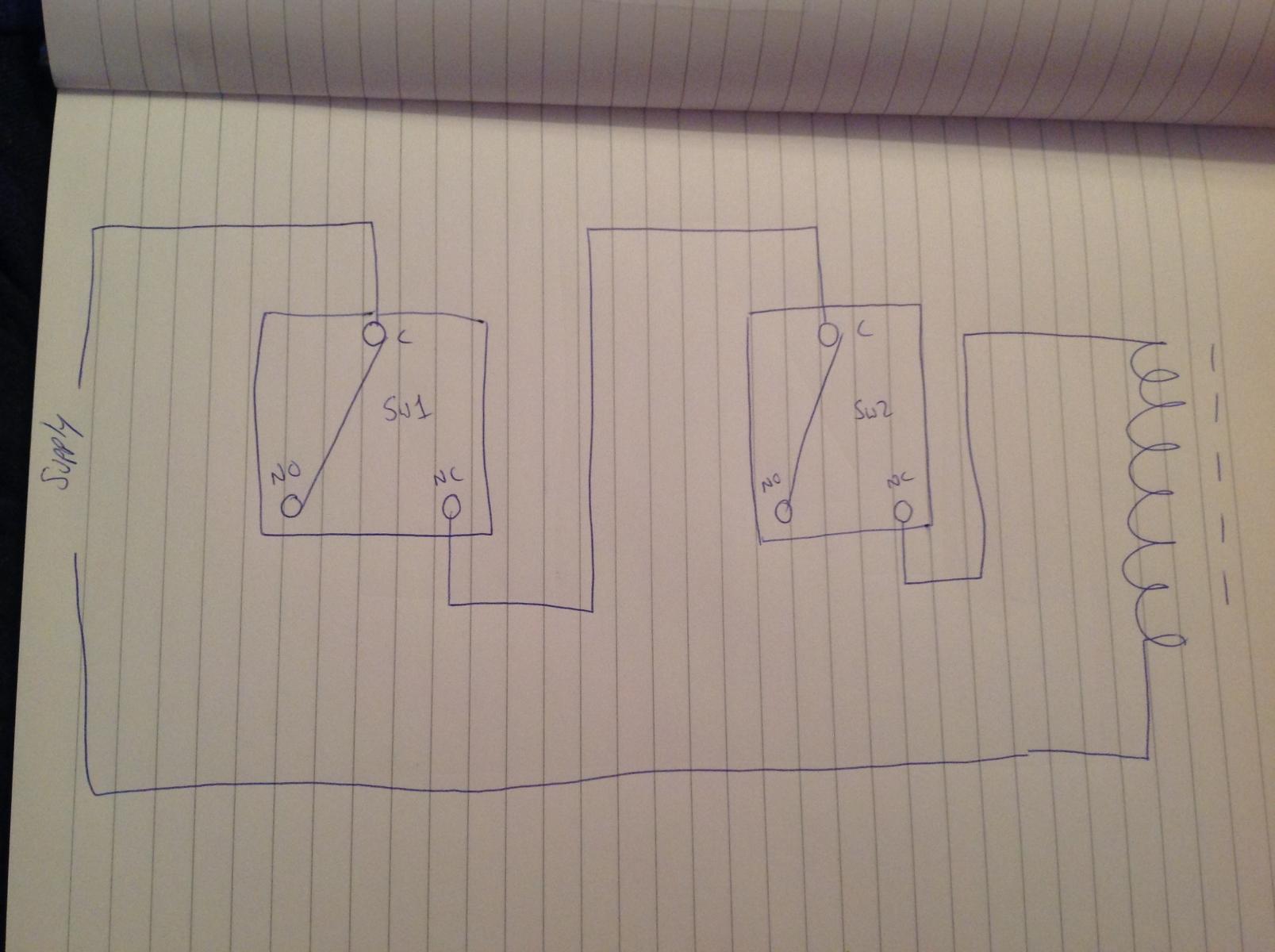

Nice one Floody, an elegant solution. Well that's Fido's little problem sorted out I'll see if I can think of a new problem when I have a few spare minutes:hurray:.

I just showed my mother and she said....

'well what if the dog and the cat are as heavy as each other'

Typical woman making it awkward.

Cheers Mam haha

Lol, if you're mum's reading these threads maybe it was a good job there weren't any clever cat ----ing devices involved. :)

Lol, if you're mum's reading these threads maybe it was a good job there weren't any clever cat ----ing devices involved. :)

Well she said to bag it and throw it in the river... But she's not your average mum :p
Given the path this project has taken, I'm now partial to consider something a little extreme.

I have a background in theatre / live events, and there were occasions where we used a device called a kabuki, a load release mechanism. Now we would need to rig the firing unit with a feed from the appropriate microswitch, but now Fido is the heavier of the two, it no longer appears as straightforward as it once was to action that.

Electro Kabuki Drop Mechanism (Load Release)

How'd They Do That? Kabuki Drop on Vimeo

I'd be inclined to allow the cat to over indulge once again, Marvo, and then let him suffer the consequences.
