Came across this table from on old thread: Is there a table of expected R1+R2 results in BS7671? - https://www.electriciansforums.net/threads/is-there-a-table-of-expected-r1-r2-results-in-bs7671.103412/


I'm just wondering if anyone has the original or a more detailed version that they wouldn't mind sharing?

TIA

Electrical2Go - Online Electrical Supplier
This official sponsor may provide discounts for members

Midwest

-
Arms
Esteemed
Doesn’t the OSG have some tables?

I had an NIC initial testing course book, with tables for R1+R2, including ones for RFC’s.


telectrix

-
Mentor
Arms
Esteemed
i have a pdf with that and other useful info. pm me your email and i'll send you it.


Paignton pete

-
Arms
Esteemed
Doesn’t the OSG have some tables?

I had an NIC initial testing course book, with tables for R1+R2, including ones for RFC’s.
I think of the top of my head it’s table I1.


Paignton pete

-
Arms
Esteemed
Yes it’s I1,
but it only gives miliohms per meter for line conductors of various sizes.

You can work out the total for whatever length from that.


Zdb

-
  • Thread Starter Thread Starter
  • #9
Thanks, Tel for the seful info.

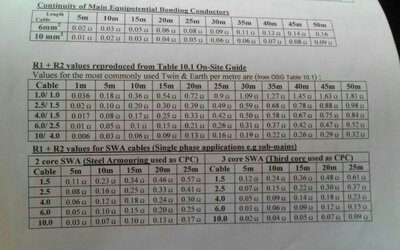

I have attached a clearer image of the tables below for anyone else who might find it useful.
