Could someone please help me on the wiring:

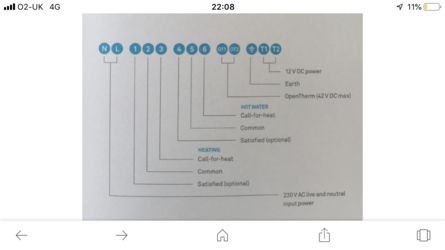

I have oil central heating and am looking to remove my programmer and replace with a nest thermostat, just need help wiring the heat link. Please see attached pictures

Thanks
