Classic 275,000 volt, 15,000Mva JW420 bulk oil breaker BTH 275kv breaker - EletriciansForums.net

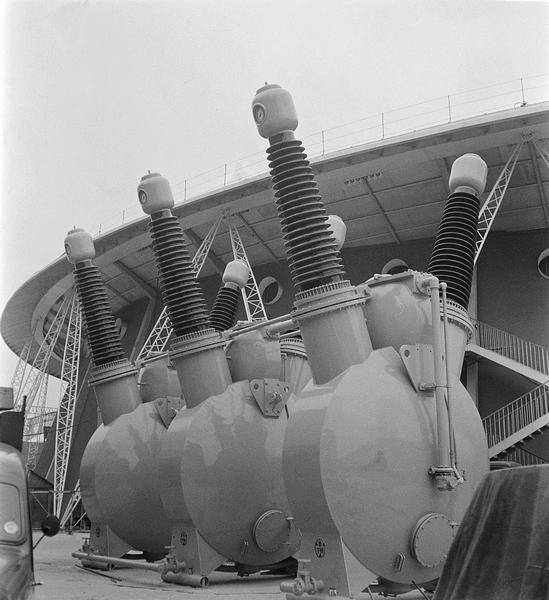

The above picture was taken at the festival of Britain and it shows a BTH bulk oil breaker, for me this represents the development of the super grid and how Britain was able to assist the world in developing higher transmission voltages.

These units are still in service and in only a few years time they will all be gone with no efforted being made to save at least one example. They have now all exceeded their design life by decades in most cases and have kept the lights on whilst the rest of the world continues with its progression. This breaker was developed in the very early 1950's and only a decade or so before, it was thought that 132kv was the maximum voltage to be used.

No one is trying to save this kit and in a few years time I think several organisations will want to turn the clock back to at least save some examples, walking into a science museum and being presented with this monster would be pretty impressive!!

My personal campaign is to do this, obtain the kit, hide it away and then release it all back into the public eye when people think it has all been scrapped and disposed off.

So, you need to find one first that is being removed in a careful fashion, the problem being that when something like this is being removed the pressure on the engineers to replace with new is massive, no time for sentimental thoughts.......flame torch, get it out!

Classic 275,000 volt, 15,000Mva JW420 bulk oil breaker IMG_1046.JPG - EletriciansForums.net

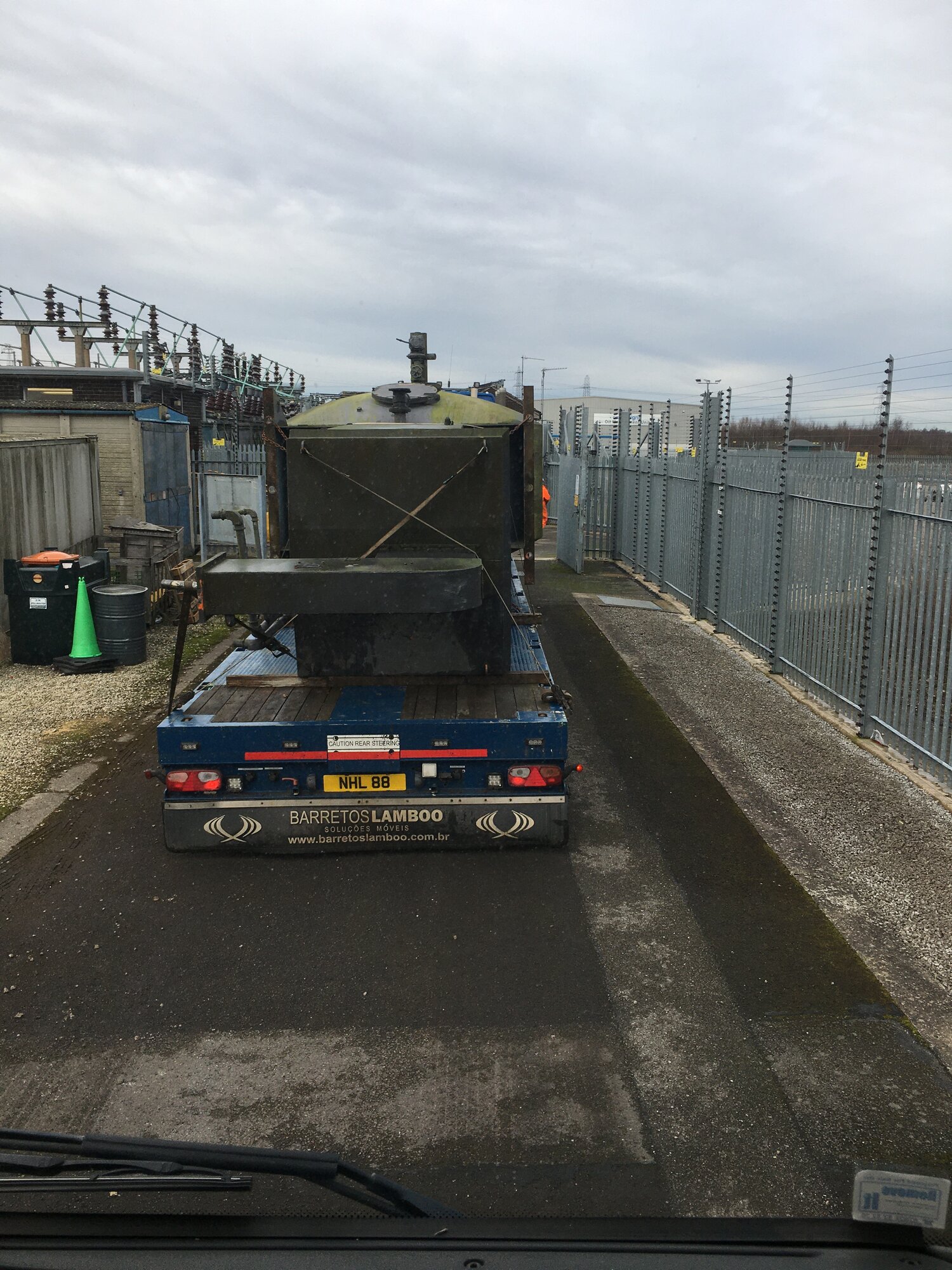

Load it on to the back of a wagon,

Classic 275,000 volt, 15,000Mva JW420 bulk oil breaker IMG_1047.JPG - EletriciansForums.net

Ensure it is strapped down.

Classic 275,000 volt, 15,000Mva JW420 bulk oil breaker IMG_1048.JPG - EletriciansForums.net

Follow it down the motorway

Classic 275,000 volt, 15,000Mva JW420 bulk oil breaker IMG_1052.JPG - EletriciansForums.net

Install the bushings.

Classic 275,000 volt, 15,000Mva JW420 bulk oil breaker IMG_1055.JPG - EletriciansForums.net

Then have ago at the lad who helped me for not wearing any safety gear!!!

We now have one, to go with the other items I will slowly drip on to this forum.

I have since made contact with the daughter of one of the chief designers of this breaker and she is over the moon that one phase has now been saved for future generations.

Just by chance, one of the very few clips on youtube showing one of these in operation is this very breaker, no link to that film maker just pure luck!

I will start to add some details about how this works and how it could possibly be rated at 275Kv at 15,000Mva
