lighting circuit required urgently

[GLYNN]

Hi

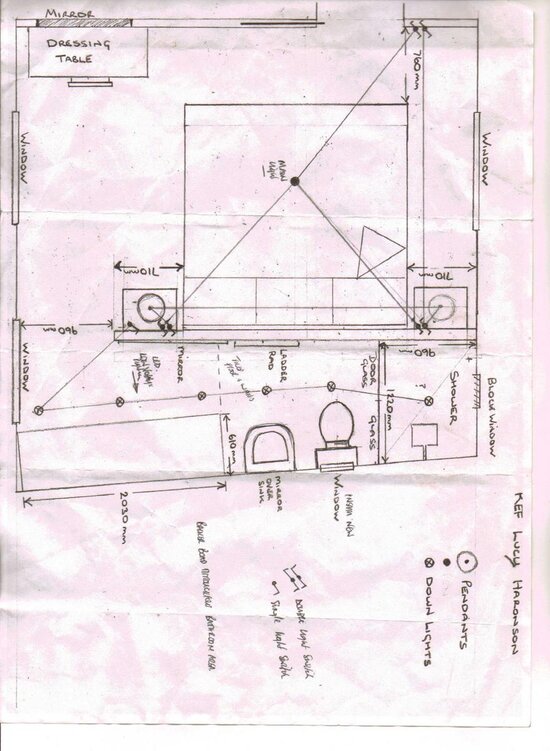

Is there any one out there n sparky world can draw me a wiring diagram for the following. You can see the drawing that n entering the main door top of the stairs, on the left will be two double switches one will be able to turn on the main light, with the option to be able to turn on/off from the bedside as well. The other double switch again to be able to turn on/off the beside lighting.

I hope someone can help?



[tazz]

Standard, 2 way lighting with intermediate switch.....



[telectrix]

why have oil on both sides of the bed? kinky?



[ipf]

The question is.....why?

edit..........not the bleedin' oil...



[telectrix]

The question is.....why?

yes. i can see the need for 3 way switching for the main light, but not for the bedside ones.



[Silly Sausage]

why have oil on both sides of the bed? kinky?

Can't you read, it's for Juicy Lucy.



[Octopus]

Dare I suggest calling a local spark?



[tazz]

Alot of hotels wire both on 3 way ....why I don`t know



[Des 56]

With such a request for this basic switching arrangement,consider whether you are wise to tackle this job



[ackbarthestar]

Why? ...more like why not... We live in non-discriminatory times.

Back on topic
Looks like two sets of mutli-way switching controlling both the main light and bedside lighting from three positions ..... but no automatic switching control for the oil dispensers !



[happysteve]

Three pillows, huh? ...



[GLYNN]

I am a electrical panel engineer so me doing the work is not an issue all want is a simple diagram of how to run the wiring, and I want to be able to turn the lights on and of fro the bedside, as my brother is now bed ridden following drunk driver hitting him, leaving him unable to ever walk. This way he can control the room lighting. So "it is nothing kinky" as some has said?



[tazz]

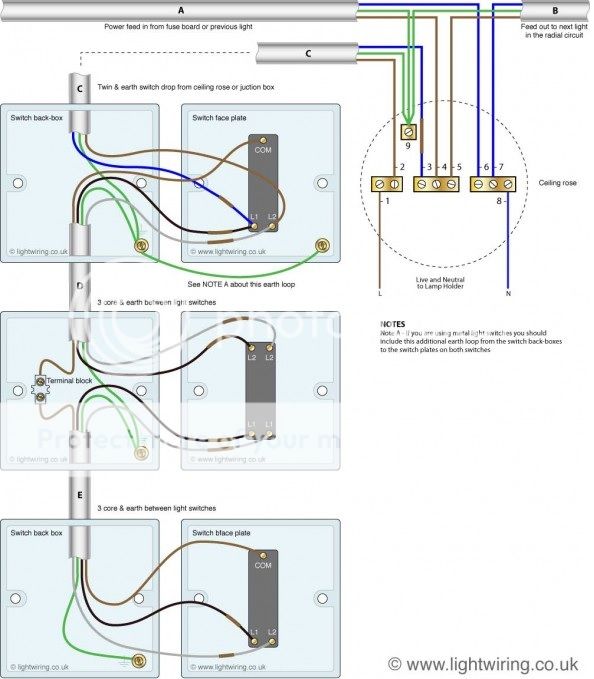

I have given you the wiring diagram in post 2



[ackbarthestar]

Alot of hotels wire both on 3 way ....why I don`t know

Its quite common in a lot of bedrooms. I'd prefer RF hand remote controlled switching myself...



[Loki]

I'm assuming that there will be some sort of extra wiring to be fitted maybe ie making a single light switch a 2 or 3 way or adding extra light pendants? & if so wouldn't that be notifiable?

Michael



[GLYNN]

Hi Thanks for your reply. In the room there are three further light rose fittings and three switches to use if required.



[telectrix]

not notifiable unless it's a new circuit.



[Simonslimline]

Profile states...Engineer with

17th, part p & Testing. Still baffled by a two way & intermediate switching arreangement!



[Guest77]

Hi
Is there any one out there n sparky world can draw me a wiring diagram for the following. You can see the drawing that n entering the main door top of the stairs, on the left will be two double switches one will be able to turn on the main light, with the option to be able to turn on/off from the bedside as well. The other double switch again to be able to turn on/off the beside lighting.

I hope someone can help?

Considering your an engineer with your 17th part p and pat testing chuckle I am amazed you need help with a basic school boy wiring system.



[Guest77]

Profile states...Engineer with

17th, part p & Testing. Still baffled by a two way & intermediate switching arreangement!

Damn, I should have read your post before replying, I wasn't copying honest



[Loki]

not notifiable unless it's a new circuit.

Thanks for clarifying that for me telectrix


Michael



[Andy78]

Thanks for clarifying that for me telectrix


Michael

You can download approved document P, as well as the other building regs documents for further help with your training.
Planning Portal - Approved documents



[Simonslimline]

Thanks for clarifying that for me telectrix


Michael

This would not apply if the circuit altered was in a special location. Ie a bathroom.

It would then fall under notifiable works.



[GMES]

I am a electrical panel engineer so me doing the work is not an issue all want is a simple diagram of how to run the wiring, and I want to be able to turn the lights on and of fro the bedside, as my brother is now bed ridden following drunk driver hitting him, leaving him unable to ever walk. This way he can control the room lighting. So "it is nothing kinky" as some has said?

Glynn, firstly sorry to hear about your brothers situation, life can be a cruel place. Regarding the wiring of the circuit Tazz as already posted the diagram you need to carry out the job in post 2.
If after reading the diagram you are still unsure of how to do it then I would seriously consider getting a local electrician in to do it for you,you could even help him with the labouring side of the job to keep the cost down. It is better to be safe than sorry mate.



[Kamikaze]

Looks to me as if there is no door between the bedroom and the shower room area. Lucy can’t be very hygienic...lol.



[Loki]

You can download approved document P, as well as the other building regs documents for further help with your training.
Planning Portal - Approved documents

Thanks Andy, I have printed off the document P & will have a read through it.


Michael



[Guest77]

Thanks Andy, I have printed off the document P & will have a read through it.


Michael

I suppose someone has got to read it.



[Loki]

I suppose someone has got to read it.

Will it help me sleep lol

Michael



[Andy78]

I wonder if the OP has considered the IP rating of the switch between the bedroom and bathroom. It's going to need to be suitable for the external influences of the situation, namely all those oily fingers.



[Guest77]

I am a electrical panel engineer so me doing the work is not an issue all want is a simple diagram of how to run the wiring, and I want to be able to turn the lights on and of fro the bedside, as my brother is now bed ridden following drunk driver hitting him, leaving him unable to ever walk. This way he can control the room lighting. So "it is nothing kinky" as some has said?

Tazz has given you a drawing fella, just follow that, sorry to hear about your brother.



[Guest77]

Will it help me sleep lol

Michael

Worth printing it off regardless, if you run out of loo roll you will have an emergency supply :biggrin:



[Loki]

Worth printing it off regardless, if you run out of loo roll you will have an emergency supply :biggrin:

I better print if off on better quality paper then lol



[cprfenom]

The Part P document is so thin it wouldn't hold your chips!



[Barry White]

I am a electrical panel engineer so me doing the work is not an issue all want is a simple diagram of how to run the wiring, and I want to be able to turn the lights on and of fro the bedside, as my brother is now bed ridden following drunk driver hitting him, leaving him unable to ever walk. This way he can control the room lighting. So "it is nothing kinky" as some has said?

Hi Glynn the oil or infact the 710 dimension at each side of the bed is where the "kinky" comes from 710 upside down as in the drawing is OIL.
My son had a similar accident and was in intensive care over 12 week followed by another 6 month in hospital he is lucky as regained some use of his legs and now can walk short distances so have an idea what you are going through and wish you all well.

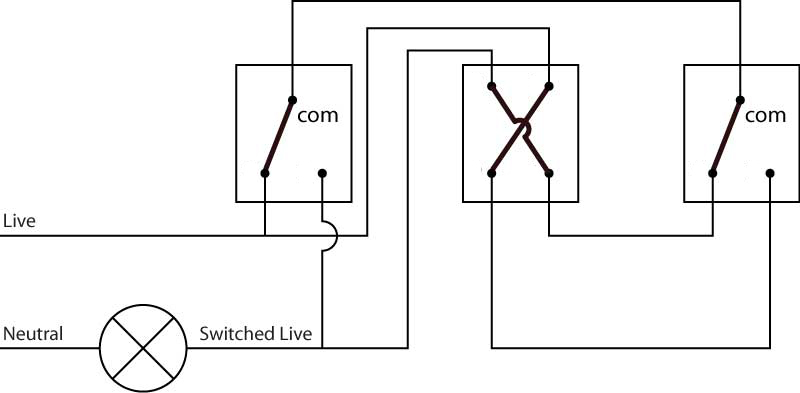

here is a clear diagram showing 3 way switching hope it helps
